Adhesive Cable Tie Mounts
Category：
Detailed
Self-Adhesive Cable Tie Mounts | Heavy-Duty Organizers for Professional Cable Management
(Peel & Stick or Screw-Mount Options – 4-Way Cable Tie Entry – High Pull-Off Force)
Product Highlights
✅ Dual Mounting Options – Strong self-adhesive sponge glue for smooth surfaces OR screw-fixing holes for heavy-duty support.
✅ 4-Way Cable Tie Entry – Flexible, fast installation with any standard nylon cable tie (zip tie).
✅ High-Stability Design – UL-approved PA66 & ABS material, resistant to vibration and wear.
✅ Maximized Adhesion – Specially formulated glue ensures strong pull-off force for long-term hold.
✅ Clean & Professional – Eliminates messy drilling; ideal for offices, factories, and home wiring.
Technical Specifications
| Feature | Details |
|---|---|
| Material | PA66 (Nylon) + ABS Base, Sponge Glue Backing |
| Mounting Options | Self-Adhesive or Screw-Fixed (Hole Included) |
| Color Options | White, Black + Custom Colors (OEM Available) |
| Packaging | 50pcs/bag or 100pcs/bag – Bulk discounts for contractors. |

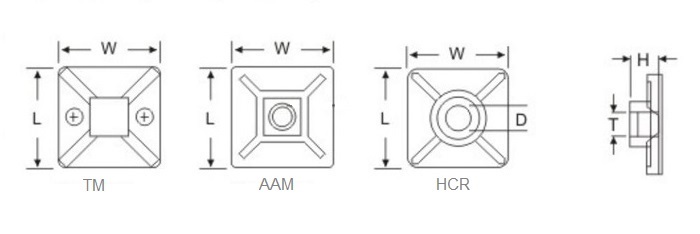

| ITEM NO. | SIZE | HEIGHT | SCREWING HOLE (D) | CABLE TIE HOLE(T) |
| LxW (MM) | MM | MM | MM | |
| TM-20 | 20x20 | 6.1 | 2.9 | 5 |
| TM-25 | 25x25 | 7.5 | 3.5 | 6.2 |
| TM-30 | 30x30 | 8.7 | 4.5 | 6.4 |
| AAM-1 | 19x19 | 4.6 | 4.4 | |
| AAM-2 | 28x28 | 6.4 | 5.5 | 5.4 |
| HCR-1 | 19x19 | 5.9 | 4.5 | 4.2 |
| HCR-2 | 28x28 | 6.6 | 5.2 | 6.0 |
Key Applications
🔹 Industrial Panels – Secure cables in control cabinets, machinery, and HVAC systems.
🔹 Data Centers – Neatly route server and network cables without drilling.
🔹 Home & Office – Organize wires under desks, TVs, or home theaters.
🔹 Automotive – Bundle wiring in cars, trucks, or marine equipment (vibration-resistant).
Why Choose Our Cable Tie Mounts?
✔ No Drilling Needed – Peel-and-stick adhesive saves installation time.
✔ Heavy-Duty Security – Screw hole backup for high-vibration environments.
✔ 4-Way Flexibility – Insert cable ties horizontally or vertically for adaptable routing.
✔ Chemical-Resistant – Withstands oils, mild solvents, and temperature swings (-30°C to +85°C).
Installation Guide
-
Surface Prep – Clean with alcohol to remove grease/dust.
-
Peel & Stick – Remove backing paper, press firmly for 30 seconds.
-
Optional Screw Fixing – Use the pre-molded hole for added security.
-
Insert Cable Ties – Thread through any of the 4 entry points.
FAQ
❓ Can these mounts be removed without residue?
→ Yes! Use a heat gun to soften the adhesive, then peel slowly.
❓ Do you offer high-temperature adhesive options?
→ Yes – Contact us for industrial-grade adhesive variants.
❓ What’s the weight capacity of the self-adhesive version?
→ Holds up to 3kg (adhesive-only) or 10kg+ with screws.
