Saddle Type Tie Mounts
Category：
Detailed
Saddle Type Tie Mounts | Heavy-Duty Cable Clips for Secure Wire Management
*(UL-Certified PA66, Vibration-Resistant, Screw-Fixed Design)*
Product Highlights
✅ Sturdy Saddle Design – Curved shape distributes strain for maximum stability on wire bundles.
✅ Vibration-Resistant – Secured with screws/bolts to withstand high-movement environments.
✅ UL-Approved Material – Made from PA66 Nylon (94V-2 flame-resistant) for durability and safety.
✅ Easy Installation – Pre-drilled hole for quick attachment to walls, panels, or machinery.
✅ Universal Compatibility – Pairs perfectly with MZ Nylon Cable Ties (sold separately).
Technical Specifications
| Feature | Details |
|---|---|
| Material | Nylon PA66 (94V-2 rated) |
| Color Options | Black / White |
| Mounting Method | Screw or bolt fixation (hardware not included) |
| Packaging | 100pcs/bag or 500pcs/bag – Bulk discounts available. |

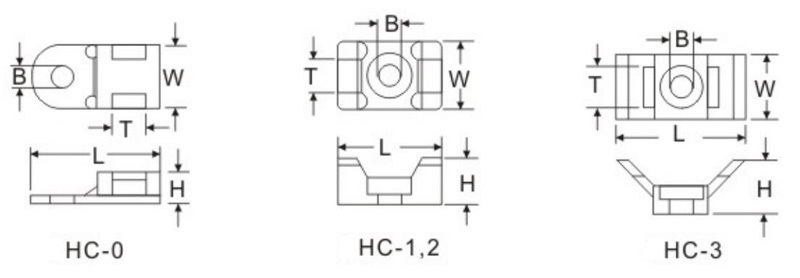

| ITEM NO. | H | L | W | T | B |
| MM | MM | MM | MM | MM | |
| HC-0 | 4.8 | 19.1 | 9.4 | 4.3 | 5.0 |
| HC-1 | 7.2 | 14.9 | 9.5 | 5.1 | 4.5 |
| HC-2 | 9.7 | 21.9 | 16.9 | 9.1 | 5.0 |
| HC-3 | 11.7 | 28.5 | 15.0 | 9.4 | 5.0 |
Key Applications
🔹 Industrial Cable Management – Secure wiring in control panels, HVAC systems, and machinery.
🔹 Vibration-Prone Areas – Ideal for automotive, aerospace, and conveyor systems.
🔹 Data Centers – Neatly organize server racks and network cables.
🔹 DIY & Home Use – Mount cables along walls or under desks for clutter-free spaces.
Why Choose Our Saddle Tie Mounts?
✔ Engineered for Heavy Bundles – Curved design reduces cable strain under load.
✔ Chemical & Heat Resistant – Withstands oils, mild acids, and temperatures up to 85°C.
✔ Smooth Surface Protection – Rounded edges prevent damage to wires.
Installation Guide
-
Clean the surface (ensure no grease/debris).
-
Align mount and drill pilot hole if needed.
-
Secure with screw/bolt (M3-M6 recommended).
-
Thread cable tie through mount and tighten.
(Compatible with all standard nylon cable ties)
FAQ
❓ Can these mounts be used outdoors?
→ Yes! Black PA66 offers UV resistance for limited outdoor use.
❓ What screw size fits the mounting hole?
→ Fits M3-M6 screws (hardware not included).
❓ Are these reusable?
→ Yes! Unscrew to reposition or replace cables.
