Push Mount Cable Ties
Category：
Detailed
Push Mount Cable Ties | Self-Locking & Releasable Zip Ties with Integrated Mount
(UL-Certified Nylon 66 – Snap-In Design for Fast Installation)
Why Choose Our Push Mount Cable Ties?
✅ Instant Snap-In Installation – Pre-drilled hole design eliminates extra hardware, saving time and labor costs.
✅ Two Mounting Styles – Choose with wings (for wider grip) or without wings (sleek profile).
✅ Industrial-Grade Material – UL-approved PA66 nylon, resistant to UV, acids, and corrosion (-30°C to 85°C).
✅ Secure & Vibration-Proof – Locking mechanism keeps bundles firmly attached to surfaces.
✅ Certified Safety – Complies with CE, ROHS, REACH, TSCA, and Halogen-Free standards.
Technical Specifications
| Feature | Details |
|---|---|
| Material | Nylon 66 (PA66) |
| Mount Types | With Wings / Without Wings |
| Color Options | Black (UV-resistant), White |
| Tensile Strength | 18LBS to 50LBS (See size chart below) |
| Packaging | 50pcs/bag or 100pcs/bag – Bulk discounts for OEM orders. |

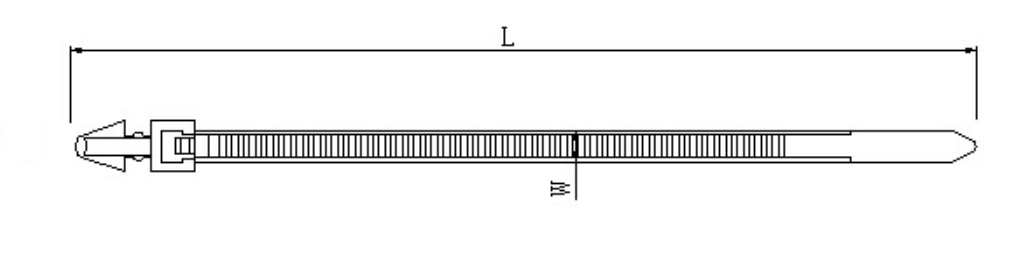

Push Mount Cable Ties Size Chart
(Custom sizes available – Contact Us for tailored solutions)
| ITEM NO. | LENGTH | WIDTH | BUNDLE DIAMETER | PLATE THICKNESS | INSTALATION HOLE | TENSILE STRENGTH | ||
| INCH | MM | MM | MM(Max) | MM | ∅MM | LBS | KGS | |
| MZ-150PT | 5.91" | 150 | 3.6 | 32 | 2.8 | 5.2 | 30 | 13 |
| MZ-200PT | 7.91" | 202 | 4.8 | 46 | 3.6 | 6.3 | 50 | 22 |
| MZ-200PTR | 7.78" | 200 | 4.8 | 46 | 3.6 | 6.4 | 50 | 22 |
| ITEM NO. | LENGTH | WIDTH | BUNDLE DIAMETER | PLATE THICKNESS | INSTALATION HOLE | TENSILE STRENGTH | ||
| INCH | MM | MM | MM(Max) | MM | ∅MM | LBS | KGS | |
| MZ-110PT1 | 4.33" | 110 | 2.5 | 22 | 2.4 | 4.8 | 18 | 8 |
| MZ-130PT1 | 5.12" | 130 | 4.8 | 25 | 3.2 | 6.4 | 50 | 22 |
| MZ-170PT1 | 5.02" | 170 | 4.8 | 38 | 3.2 | 6.4 | 50 | 22 |
| MZ-200PT1 | 7.87" | 200 | 4.8 | 45 | 3.2 | 6.4 | 50 | 22 |
| MZ-130PTR1 | 5.12" | 130 | 3.2 | 28 | 2.0 | 4.0 | 30 | 13 |
| MZ-200PTR1 | 7.78" | 200 | 4.8 | 45 | 3.2 | 6.4 | 50 | 22 |
Key Applications
🔹 Automotive – Secure wiring harnesses to frames or panels.
🔹 Aerospace – Vibration-resistant cable management in tight spaces.
🔹 Telecom/Data Centers – Fast routing of server and network cables.
🔹 Industrial Machinery – Mount control panels or hydraulic lines.
🔹 DIY & Construction – Organize tools, temporary fixes, or outdoor wiring.
Advantages Over Traditional Cable Ties
✔ No Adhesives or Screws Needed – Saves installation time and reduces hardware costs.
✔ Space-Saving Design – Fits confined areas where standard ties fail.
✔ Releasable Options – Reusable for adjustable bundling (select models).
FAQ
❓ What’s the difference between "with wings" and "without wings"?
→ With wings: Wider base for stronger grip on uneven surfaces. Without wings: Low-profile for flush mounting.
❓ Can these be used outdoors?
→ Yes! Black ties are UV-resistant for long-term outdoor use.
❓ Do you offer custom hole sizes?
→ Yes – We tailor hole diameter, length, and color for OEM projects.
