MG Cable Glands | Metric Threaded Nylon Cable Glands for Industrial Use
(UL-Certified PA66, IP68 Seal, Wide Cable Range – M12 to M63 Sizes Available)
Product Highlights
✅ Secure Cable Fixation – Patented claw & seal design grips cables firmly, offering superior strain relief and vibration resistance.
✅ Wider Cable Range – Single gland accommodates flexible cables of varying diameters (e.g., MG-32 fits 18–25mm cables).
✅ Chemical Resistance – Withstands saltwater, oils, grease, weak acids, and solvents (ideal for harsh environments).
✅ Tool-Free Installation – Cable threads directly through without disassembly, saving 50%+ installation time.
✅ Certified Safety – Compliant with CE, ROHS, REACH, TSCA, and Halogen-Free standards.
Technical Specifications
| Feature | Details |
|---|---|
| Material | UL-approved Nylon 66 (PA66) – High mechanical strength & flame retardant (94V-2). |
| Temperature Range | -30°C to +85°C – Stable performance in extreme conditions. |
| IP Rating | IP68 (Dustproof/waterproof when properly installed). |
| Color Options | Black, White, Gray + Custom Colors (OEM requests accepted). |
| Packaging | 5pcs, 20pcs, 50pcs, or 100pcs/bag – Bulk discounts for distributors. |

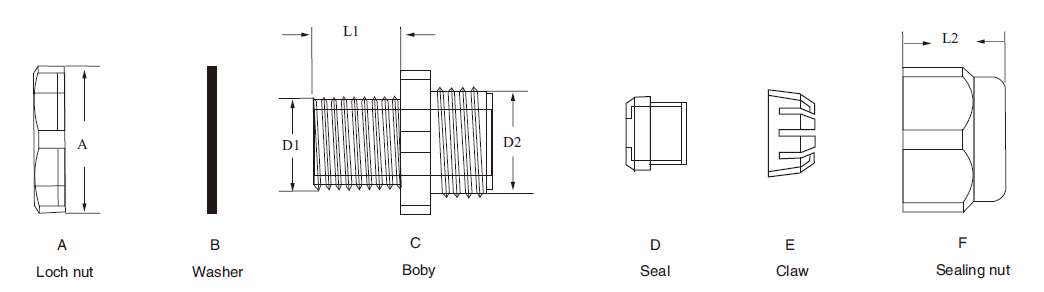

| ITEM NO. | THREADED ENTRY | D1 | D2 | L1 | L2 | A | PANEL MOUNTING HOLE | CABLE RANGE |
| METRIC MM | MM | MM | MM | MM | MM | MM | ||
| MG-12 | M12x1.25 | 12 | M16x1.5 | 8.5 | 16 | 19 | 12.5 | 4.5-8 |
| MG-16 | M16x1.5 | 16 | M20x1.5 | 15 | 19.5 | 24 | 16.5 | 6-10 |
| MG-20 | M20x1.5 | 20 | M25x1.5 | 15 | 21.5 | 30 | 20.5 | 9-14 |
| MG-25 | M32x1.5 | 25 | M31x2 | 15 | 24.5 | 36 | 25.5 | 13-18 |
| MG-32 | M32x1.5 | 32 | M38x2 | 15 | 27.5 | 46 | 33 | 18-25 |
| MG-40 | M40x4.5 | 40 | M46x2 | 20 | 31 | 54 | 41 | 24-30 |
| MG-50 | M50x1.5 | 50 | M58x2 | 23 | 37 | 67 | 51 | 30-40 |
| MG-63 | M63x1.5 | 63 | M72x2 | 24 | 42 | 81.5 | 64 | 40-50 |
Key Applications of MG Cable Glands
🔹 Industrial Control Panels – Secure power & instrumentation cables in PLCs, switchgear.
🔹 Marine & Offshore – Saltwater-resistant seals for shipboard electrical systems.
🔹 Solar Energy – UV-stable glands for photovoltaic cable management.
🔹 Telecom & Data Centers – Strain relief for fiber optic and Ethernet cables.
🔹 HVAC & Automotive – Vibration-proof cable fixation in motors and control units.
Why Choose Our MG Series Cable Glands?
✔ Time-Saving Design – No disassembly needed; cables thread directly through.
✔ Multi-Layer Protection – Dual sealing (rubber + nylon) prevents dust/water ingress.
✔ Global Compliance – Certified for EU, North American, and Asian markets.
FAQ
❓ Are these glands reusable?
→ Yes! The self-locking seal allows cable replacement without gland damage.
❓ Can I use these with armored cables?
→ For armored cables, recommend our MGS Series with metal thread.
❓ Is the black color UV-resistant?
→ Yes, black/gray glands contain UV stabilizers for outdoor use.
