Fir Tree Push Mount Cable Ties
Category：
Detailed
Fir Tree Push Mount Cable Ties | Automotive-Grade Self-Locking Zip Ties with Panel Mount
(UL-Certified Nylon 66, Dust-Proof Design, 55LBS Tensile Strength)
Key Features
✅ Integrated Fir Tree Mount – Pre-assembled two-piece design seamlessly locks into pre-punched/threaded holes (1-8mm panel thickness).
✅ Dust & Water Protection – Unique "disc" head seals installation holes against contaminants.
✅ High-Temp Resistant – PA66 material withstands -30°C to 105°C, ideal for automotive/industrial use.
✅ 50LBS Tensile Strength – Heavy-duty bundling for cables, wires, and harnesses.
✅ Certified Safety – Compliant with CE, ROHS, REACH, TSCA & Halogen-Free standards.
Technical Specifications
| Parameter | Details |
|---|---|
| Material | UL-Approved Nylon 66 (PA66) |
| Mount Type | Fir Tree Push Mount (Two-Piece Design) |
| Color | Black |
| Hole Compatibility | Pre-punched or threaded holes (∅6.5-8.5mm) |
| Packaging | 50pcs/bag or 100pcs/bag – Bulk discounts available. |
Product Variants Table
| ITEM NO. | LENGTH | WIDTH | BUNDLE DIAMETER | PLATE THICKNESS | INSTALATION HOLE | TENSILE STRENGTH | ||
| INCH | MM | MM | MM(Max) | MM | ∅MM | LBS | KGS | |

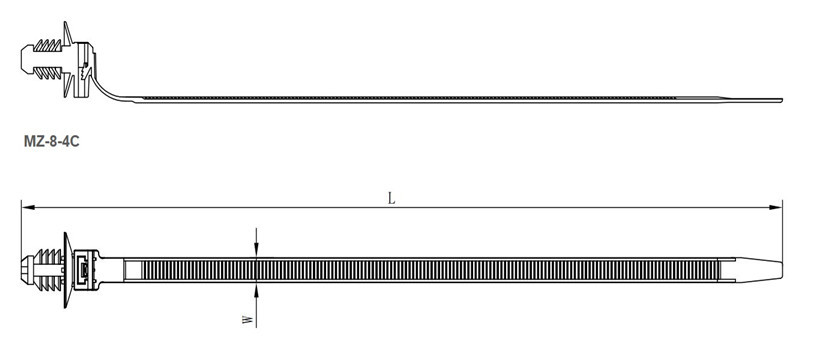

| MZ-8-4C | 7" | 185 | 5.5 | 43 | 1.0-4.0 | 8.0-8.5 | 50 | 22 |
| ITEM NO. | LENGTH | WIDTH | BUNDLE DIAMETER | PLATE THICKNESS | INSTALATION HOLE | TENSILE STRENGTH | ||
| INCH | MM | MM | MM(Max) | MM | ∅MM | LBS | KGS | |

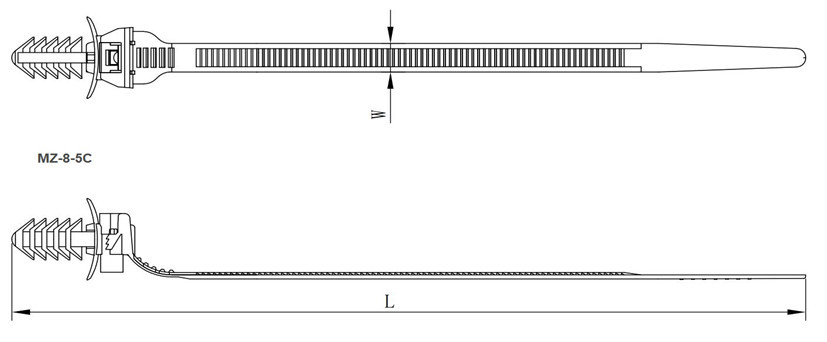

| MZ-8-5C | 5.51" | 140 | 5.5 | 25 | 1.0-7.0 | 6.5-7.5 | 50 | 22 |
| ITEM NO. | LENGTH | WIDTH | BUNDLE DIAMETER | PLATE THICKNESS | INSTALATION HOLE | TENSILE STRENGTH | ||
| INCH | MM | MM | MM(Max) | MM | ∅MM | LBS | KGS | |

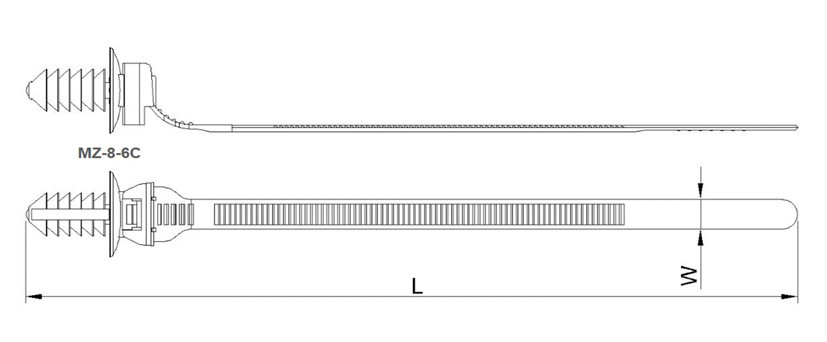

| MZ-8-6C | 6.69" | 170 | 5.5 | 35 | 1.0-8.0 | 6.5-7.5 | 50 | 22 |
| ITEM NO. | LENGTH | WIDTH | BUNDLE DIAMETER | PLATE THICKNESS | INSTALATION HOLE | TENSILE STRENGTH | ||
| INCH | MM | MM | MM(Max) | MM | ∅MM | LBS | KGS | |

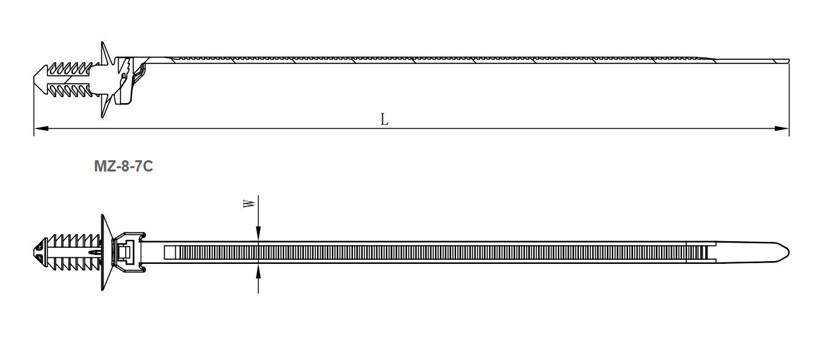

| MZ-8-7C | 6.69" | 170 | 4.8 | 39 | 0.7-7.0 | 6.5-7 | 50 | 22 |
Why Choose Our Fir Tree Mount Cable Ties?
🔹 Automotive-Grade – Original design for vehicle cable harnesses (withstands vibrations).
🔹 Versatile Mounting – Adapts to variable panel thicknesses (0.7-8mm) without tools.
🔹 Time-Saving – Pre-assembled design allows quick head orientation during installation.
🔹 Environmentally Resilient – UV-stable black color, resists oil and chemicals.
Typical Applications
🏎️ Automotive – Engine bay wiring, dashboard harnesses, EV battery cables.
🏭 Industrial – Control panels, machinery cable management, HVAC systems.
📱 Electronics – Securing wires in server racks or telecom equipment.
FAQ
❓ Can these ties be reused?
→ No, single-use self-locking design for permanent installations.
❓ What hole size is required?
→ Compatible with ∅6.5-8.5mm holes (see size chart).
❓ Are they suitable for outdoor use?
→ Yes! Black PA66 material resists UV and moisture.
