Double Locking Nylon Cable Ties
Category：
Detailed
Double Locking Cable Ties | Heavy-Duty Vibration-Proof Zip Ties
(UL Certified Nylon 66, High-Tensile Strength, Ideal for Harsh Environments)
Product Highlights
✅ Double-Locking Security – Unique outward-facing serrated design ensures a rock-solid grip, even in high-vibration applications.
✅ Protective Bundling – Minimizes abrasion on sensitive wires, cables, and hoses with smooth inner surfaces.
✅ Extreme Durability – Made from UL-approved Nylon 66 (PA66), resistant to fire (94V-2), acids, and corrosion.
✅ Wide Temperature Range – Performs reliably from -35°C to +85°C (suitable for industrial and outdoor use).
✅ UV-Resistant Option – Black cable ties with carbon additive for enhanced sunlight resistance.
Technical Specifications
| Feature | Details |
|---|---|
| Material | Nylon 66 (PA66) – UL Approved |
| Locking Mechanism | Double-locking with outward-facing teeth for maximum grip |
| Tensile Strength | 18LBS to 250LBS (varies by size) |
| Color Options | Black (UV-resistant), White, + Custom Colors (Red, Blue, etc.) |
| Packaging | 50pcs/bag or 100pcs/bag – Bulk discounts available. |
| Certifications | CE, ROHS, REACH, TSCA, Halogen-Free |

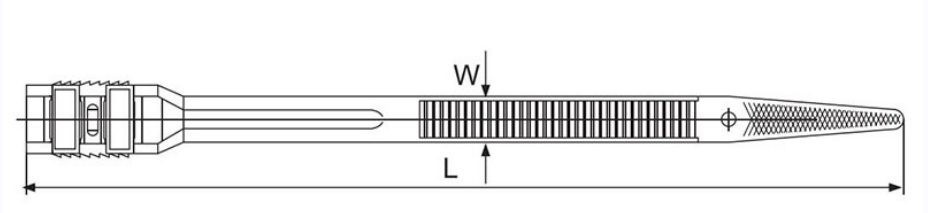

Full Size Chart – Double Locking Cable Ties
(Custom sizes available – Contact Us for OEM requests)
| ITEM NO. | LENGTH | WIDTH | BUNDLE DIAMETER | TENSILE STRENGTH | ||
| INCH | MM | MM | MM | LBS | KGS | |
| MZ-180DL | 7.09" | 180 | 9.0 | 3-40 | 110 | 50 |
| MZ-260DL | 10.24" | 260 | 9.0 | 3-65 | 110 | 50 |
| MZ-300DL | 11.81" | 300 | 9.0 | 3-80 | 110 | 50 |
| MZ-350DL | 13.78" | 350 | 9.0 | 3-90 | 110 | 50 |
| MZ-510DL | 20.08" | 510 | 9.0 | 3-140 | 110 | 50 |
Why Choose Double Locking Over Standard Cable Ties?
🔹 Superior Vibration Resistance – Prevents loosening in machinery, automotive, and aerospace applications.
🔹 Gentle on Wires – Smooth inner surface reduces wear on cables and hoses.
🔹 Reusable? No – Designed for permanent, high-security fastening.
Common Applications
🏭 Industrial – Securing hydraulic lines, electrical panels, and conveyor systems.
🚗 Automotive – Engine bay wiring, hose fastening, and vibration-prone areas.
🔌 Electrical – Heavy-duty cable management in data centers and control panels.
🌿 Outdoor Use – UV-resistant black ties for solar panels, fencing, and marine environments.
FAQ
❓ Can these be used in high-temperature environments?
→ Yes! Stable performance up to +85°C (short-term peaks higher).
❓ Why do the teeth face outward?
→ The design maximizes grip while reducing internal cable abrasion.
❓ Are colored ties UV-resistant?
→ Only black ties contain UV stabilizers. Other colors are for indoor use.
